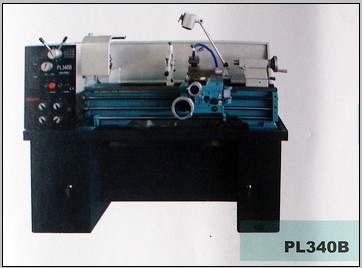

PL340B
<!--?xml:namespace prefix = "o" /-->
|
SPECIFIACTION |
主要技术参数 |
BL340B |
BL360A |
|
|
Sawing over bed Sawing over carriage |
导致上回转直径 床鞍上回转直径 |
330mm 195mm |
358mm 224mm |
|
|
Sawing over gap |
马鞍上回转直径 |
476mm |
502mm |
|
|
Center to center |
两顶尖距离 |
1000mm |
1000mm |
|
|
Spindle bore |
主轴孔径 |
38mm |
38mm |
|
|
Spindle speed |
主轴转速 |
70-2000rpm |
70-2000rpm |
|
|
Spindle taper |
主轴锥度 |
MT#5 |
D1-4 |
|
|
Cross slide travel |
横向行程 |
170mm |
160mm |
|
|
Compound side travel |
刀架行程 |
75mm |
95mm |
|
|
Range of longitudinal feed |
纵向进给量范围 |
0.052-1.392mm/r |
0.25-1.392mm/r |
|
|
Range of cross feed |
横向进给量范围 |
0.014-0.38mm/
|
0.014-0.380mm/
|
|
|
Metric threads |
公制螺纹 |
26/0.4-7 mm |
0.4-7.0mm |
|
|
Inch threads |
英制螺纹 |
34/56-4tpi |
56-4tpi |
|
|
Tailstock taper |
尾座锥度 |
MT#3 |
MT#3 |
|
|
Quill of tailstock travel |
尾座套筒行程 |
95mm |
95mm |
|
|
Diameter of tailstock quill |
尾座套筒直径 |
40mm |
35mm |
|
|
Moter power |
主电机功率 |
1500w |
1500w |
|
|
Net weight |
净重 |
520kg |
510kg |
|
|
Packing size |
包装尺寸 |
1920x750x760mm |
1930x760x780mm |
|
