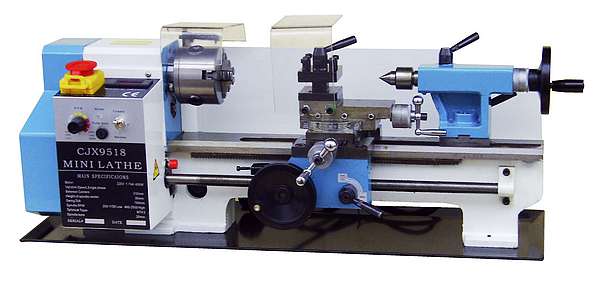

GJX9518
Features特点：
Metal & hobby working
适合金属及模型加工
Variable speed control
主轴可控无级调速
Auto longitudinal feeding
纵向自动进给
Safety switchu & covers
|
SPECIFIACTION<!--?xml:namespace prefix = "o" /--> |
主要技术参数 |
BL180/BLX180 |
|
Sawing over bed |
导致上回转直径 |
180mm |
|
Sawing over carriage |
床鞍上回转直径 |
105mm |
|
Distance between centers |
两顶尖距离 |
310 mm |
|
Spindle bore |
主轴孔径 |
20mm |
|
Spindle speed(low) |
主轴转速(低速) |
100-1100rpm |
|
(high) |
(高速) |
100-2500rpm |
|
Spindle taper |
主轴锥度 |
MT#3 |
|
Cross slide travel |
横向行程 |
65mm |
|
Metric threads |
可加工公制螺纹 |
0.4-2mm |
|
Inch threads |
可加工英制螺纹 |
52-12TPI |
|
Tailstock taper |
尾座锥度 |
MT#2 |
|
Quill of tailstock travel |
尾座套筒行程 |
40mm |
|
Motor power (DC) |
直流电机功率 |
350w |
|
Net weight |
净重 |
35kg |
|
Packing size |
包装尺寸 |
700x310x360mm |
